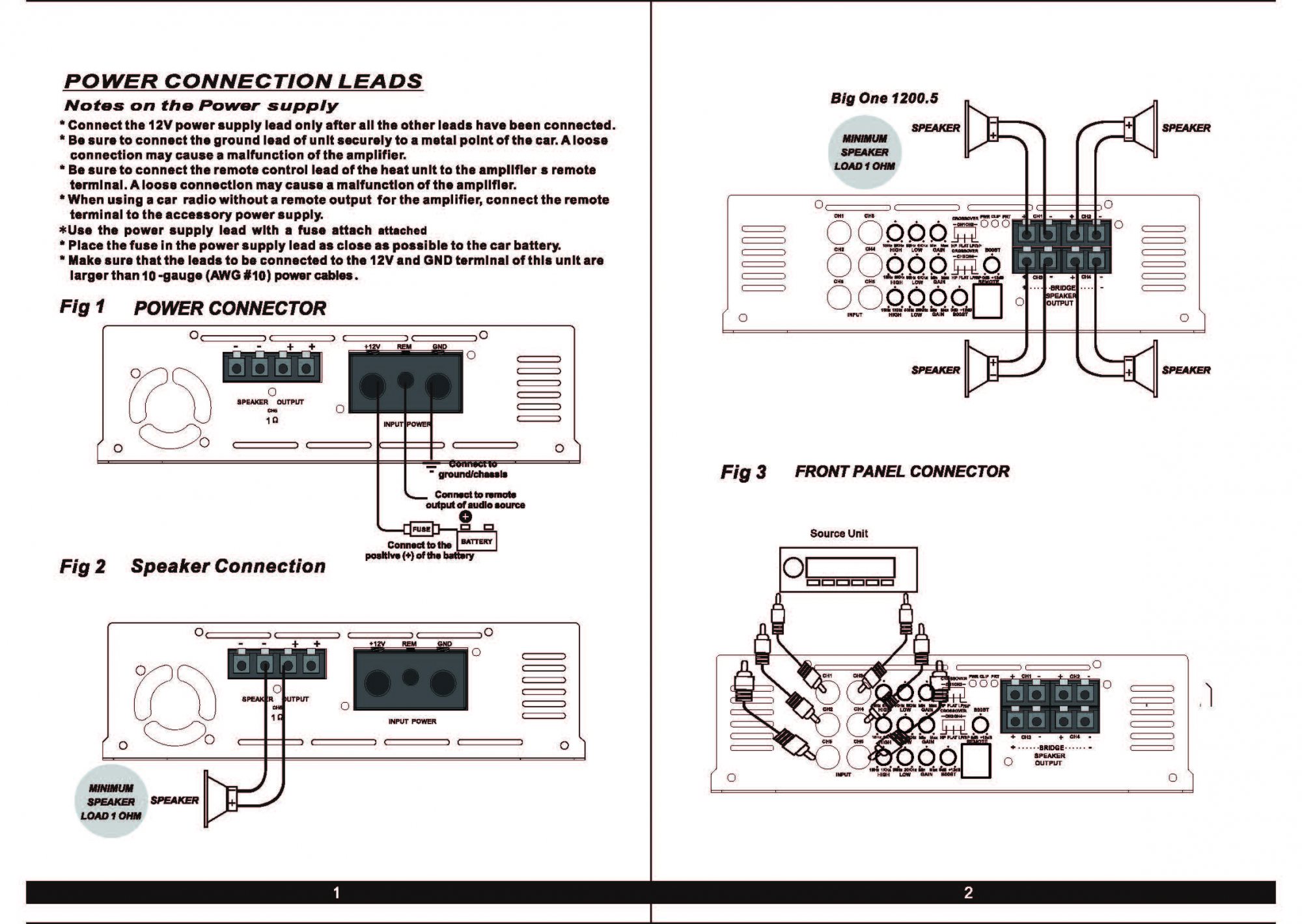

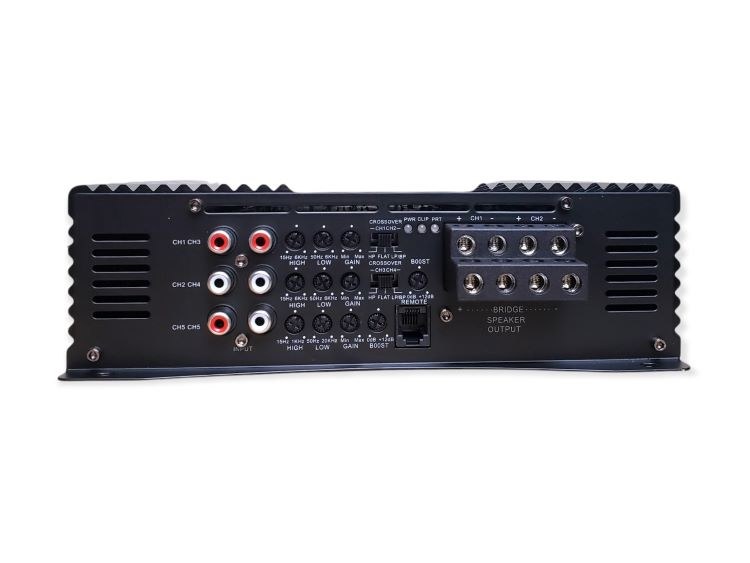

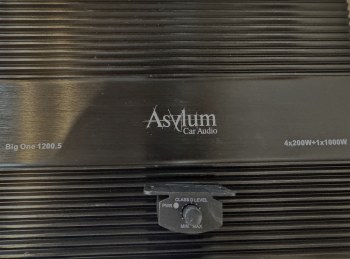

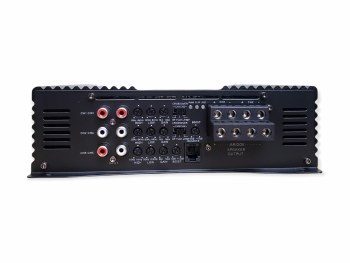

Documents BIG ONE
Specifications BIG ONE

BRAZIL STYLE FULL RANGE 5 CH AMP (200W X 4 + 1,000W X 1 @ 1-OHM, 100W X 4 + 600W X 1 @ 2-OHM, 400W X 2 BRIDGED + 1,000 X 1) CFAB1200.5

MODEL: BIG ONE (CFAB1200.5)			SAMPLE NO: Automotive power amplifier				CHANNEL: 5
CUSTOMER:			SPECIFICATION:				DATE: 2020.6.19
NO	STANDARD TEST CONDITIONS			NO	STANDARD TEST CONDITIONS
1	Operating Voltage: 14.4V			4	Signal Source: Sine wave
2	Reference Frequency: 1KHz			5
3	perating Temperature: 25℃±3℃			6
NO	Test items	TEST CONDITIONS				Unit	SPEC
							CH1	CH2	CH3	CH4	CH5
1	Output power	1%THD+N1Ω1khz（（GAIN at max, level 0)				W	207	208	205	201	1015
		1%THD+N2Ω1khz（（GAIN at max, level 0)				W	126	124	123	120	690
		BTL1%THD 2Ω1khz（（GAIN at max, level 0)				W	410		409
2	THD+N	Rated power 205w/1Ω1khz（（GAIN at max, level 0)				%	1	1	1	1	1
		Rated power123w/2Ω1khz（（GAIN at max, level 0)				%	1	1	1	1	1
		power 1w/1Ω1khz（（GAIN at max, level 0)				%	1	1	1	1	1
3	Input sensitivity	Line in power 205w/1Ω1khz（（GAIN at max, level 0)				mV	200	200	200	200	200
		High level input 1khz（（GAIN at max, level 0)				V	‐	‐	‐	‐	‐
4	Frequency response	1w/1Ω^{1khz=0db/-3db}（GAIN at max, level 0)+80k				Hz	15- 20k	15- 20k	15- 20k	15- 20k	15- 20k
5	LPF	1w/1Ω1khz=0db/-3db（（GAIN at max, bass 0), LPF 50hz-6khz level 0)				Hz	47- 5.6k	47- 5.6k	47- 5.6k	47- 5.6k	50- 20k
6	HPF	1w/1Ω1khz=0db/-3db（（GAIN at max, bass 0), HPF 15hz-6khz level 0)				Hz	16- 6.1k	16- 6.1k	16- 6.1k	16- 6.1k	15- 1k
7	LEVEL	1w/1Ω50hz=0db/-3db（GAIN ^{at max, level 12 dB}）				dB	‐	‐	12.5	12.5	12.6
8	Signal to noise	Read power 205w/1Ω1khz（（GAIN at max, level 0)+A				dB	105	105	105	105	105
		Power 1w/1Ω1khz（GAIN at max, level 0)+A				dB	85	85	85	85	85
9	Separation	Separation power 205 w/1Ω（（GAIN at max, level 0)				dB	-42	-42	-42	-42	‐
10	Output noise	Signal source:600Ω（（GAIN at max, level 0)				mV	10	11	13	12	‐
11	Current draw	No-loads rated Current draw（（GAIN at max, level 0)				A	2.9
		Full rated power Current draw（（GAIN at max, level 0)				A	181
12	Protector test	Temperature protector (rated total power 205 w/1Ω1khz )				℃	75
		Protector time (rated total power 205w/1Ω1khz )				Min	15
